re used to create a connection between equipment inside a vacuum chamber and the outside world. They are made from 1 or more conductors that pass through a vacuum flange and are insulated from the flange. The insulating material needs to be able to withstand a pressure of 1 bar from the air-side when the chamber has been evacuated; it is normally glass ceramic.

Electrical Feedthroughs Types

SUB-D FEEDTHROUGHS

Allectra has developed a full range of sub-D feedthroughs and high vacuum and UHV connectors, together with their associated cables. The availability of a full range of sub-D cables and connectors has been very well received by the high vacuum industry. The greatly increased convenience of using an industry standard system has been responsible for the great success of this product. The Allectra range is true UHV standard without any glue or adhesives.

SUB-D STANDARD FEEDTHROUGHS

MORE INFORMATION

HIGH DENSITY SUB-D FEEDTHROUGHS

MORE INFORMATION

CONNECTORS & PINS STANDARD SUB-D

Vacuum components - Avactec
MORE INFORMATION

CONNECTORS & PINS THERMOCOUPLE SUB-D

moRE INFORMATION

CRIMP PINS FOR CONNECTORS SUB-D

MORE INFORMATION

READY MADE CABLES SUB-D

MORE INFORMATION

CM FEEDTHROUGHS

This feedthrough design can be used with industry standard air-side connectors. It can be supplied with 6, 12 or 19 pins per feedthrough.

CM FEEDTHROUGHS

MORE INFORMATION

CM FEEDTHROUGHS SETS

MORE INFORMATION

CM CONNECTORS

MORE INFORMATION

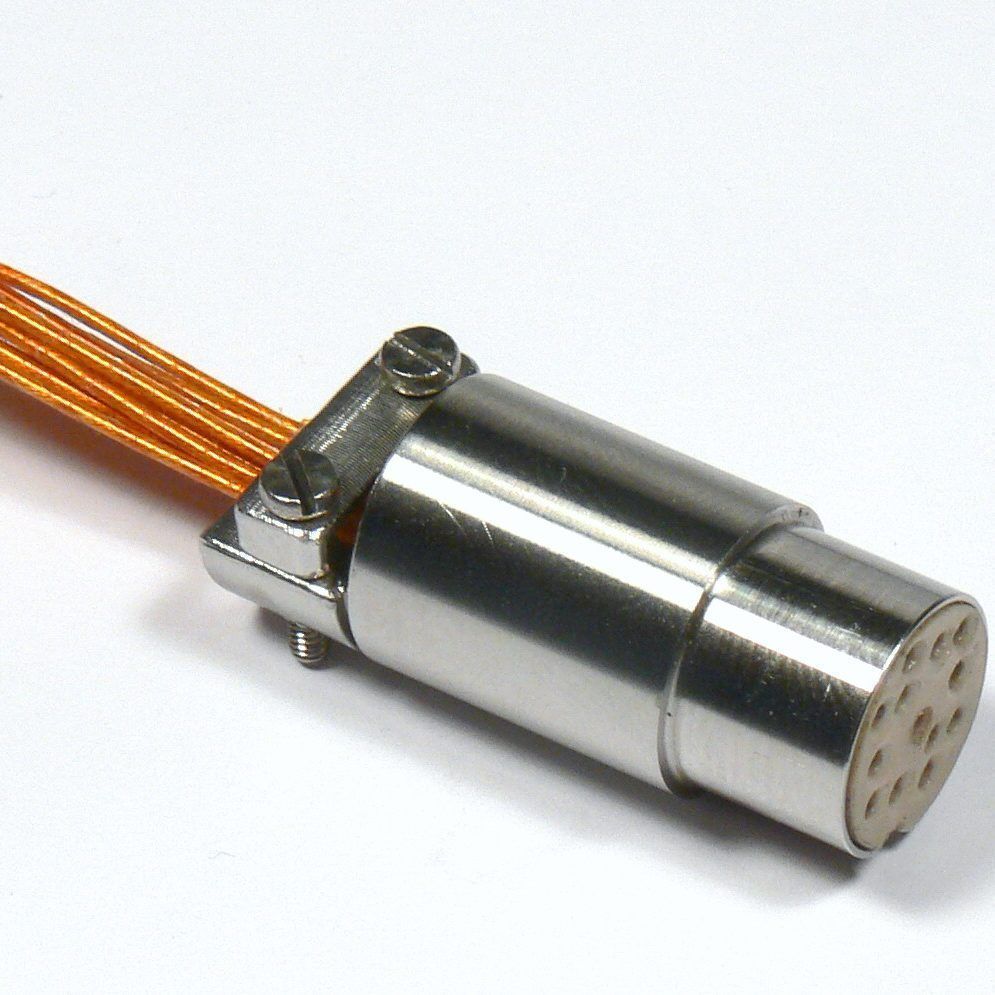

CM READY MADE CABLES

MORE INFORMATION


THERMOCOUPLE FEEDTHROUGHS

Thermocouple feedthroughs have pins made from the corresponding thermocouple pair materials. On the vacuum side the pins terminate with a screw connector. The (+) pole is 25 mm longer than the (-) pole.

THERMOCOUPLE TYPES K, C & N

Combination feedthroughs for heaters that need both power and temperature measurement.

MORE INFORMATION

THERMOCOUPLE TYPES R & S

Type R & S thermocouples with ‘screw loop’ connectors.

MORE INFORMATION

COMBINATION POWER/TC

Combination feedthroughs for heaters that need both power and temperature measurement.

MORE INFORMATION

THERMOCOUPLE MS SOCKET TYPES

Up to 10 type K feedthroughs on a single MS type feedthrough.

MORE INFORMATION

THERMOCOUPLE CONNECTORS

Air-side and vacuum-side connectors for thermocouple feedthroughs.

MORE INFORMATION

THERMOCOUPLE WIRES

Thermocouple wires coated by UHV-compatible insulation materials.

MORE INFORMATION

CO-AXIAL FEEDTHROUGHS

Coaxial feedthoughs have a central conductor with an external conducting shield and are normally used to carry signals at high frequencies.
These feedthroughs are often available with an impedance of 50 Ω, for matching to the impedance of coaxial cables to minimise the reflected signal at the cable – feedthrough interface.

They can be supplied with a grounded or floating shield and single or double sided.

BNC & BNC50

Good general purpose solution where a high DC voltage is not required, using industry standard air-side connectors and cables.

MORE INFORMATION

SMA

Are used for high-frequency signals. We offer 3 versions, with maximum frequencies ranges from 6.5 GHz to 40 GHz.

MORE INFORMATION

MHV & MHV50

Have a recessed pin and an increased voltage rating compared to BNC.

MORE INFORMATION

SAFE HIGH VOLTAGE SHV

A similar voltage rating to MHV feedthroughs, but with a better air-side connector.

MORE INFORMATION

SPECIAL HIGH FREQUENCY

Includes type-N. 7/16 and SMA feedthroughs.

MORE INFORMATION

POWER FEEDTHROUGHS

We offer power feedthroughs for voltages up to 60 kV and currents up to 1,000 A using a variety of pin materials.

POWER/LOW VOLTAGE TYPES

Power Feedthroughs on CF, KF flanges with Kovar, SS, Ni and Cu conductors up to 5kV 20Amps

MORE INFORMATION

MULTIWAY MS

Multi-way power Feedthroughs with Circular MS connectors; M12 types.

MORE INFORMATION

POWER GLOVE

A new design of 5, 10, 20 and 40 kV feedthroughs. Air side cables with 2.4 m length included
1, 2, 4, 6 or 8 Pins option.

MORE INFORMATION

HIGH VOLTAGE

Special arrangements on standard or custom flanges are available on request.

MORE INFORMATION

PINS AND CONTACTS

Pins and Connectors to fit Power Feedthroughs.

MORE INFORMATION

CERAMIC BREAKS

Ceramic breaks and Stand-offs flanged and unflanged.

MORE INFORMATION
